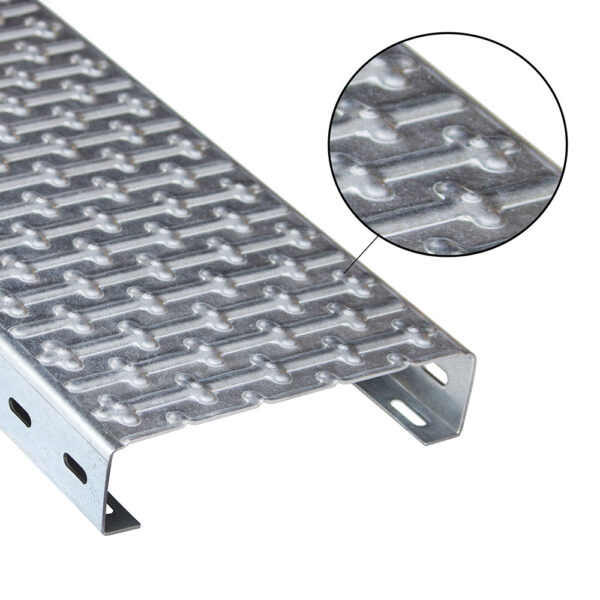

Profile XB

Profile XB

Profiles embossed closed and perforated H58 P60

Available sections: W x H x THK (mm)

  • 200x58x1.5
    250x58x1.5
  • 200x58x2.0
    250x58x2.0
    300x58x2.0
  • 200x58x2.5
    250x58x2.5
    300x58x2.5

Length (mm):

600 to 12000
Intermediate measures:
Cutting Pitch 60 mm

Material: Raw Steel Thk. 2.0 mm and more, Sendzimir Zinc Plated Steel, Hot-Dip Galvanized Steel Thk. 2.0 mm and more, Cor-Ten A Steel Thk. 2.0 mm and more, Stainless Steel AISI 304 or 316 Thk. 1.5 or 2.0 mm, Aluminium Alloy Peraluman 5754 H111 Thk. 2.5 mm

Features:Embossed surface for best rigidity; The “punctioned” surface assures the anti-slip effect; Suitable for cycle and pedestrian walkways, wheelchair ramps, mezzanines and technical applications/gangways; Slip Resistance Rating R11 DIN 51130.
