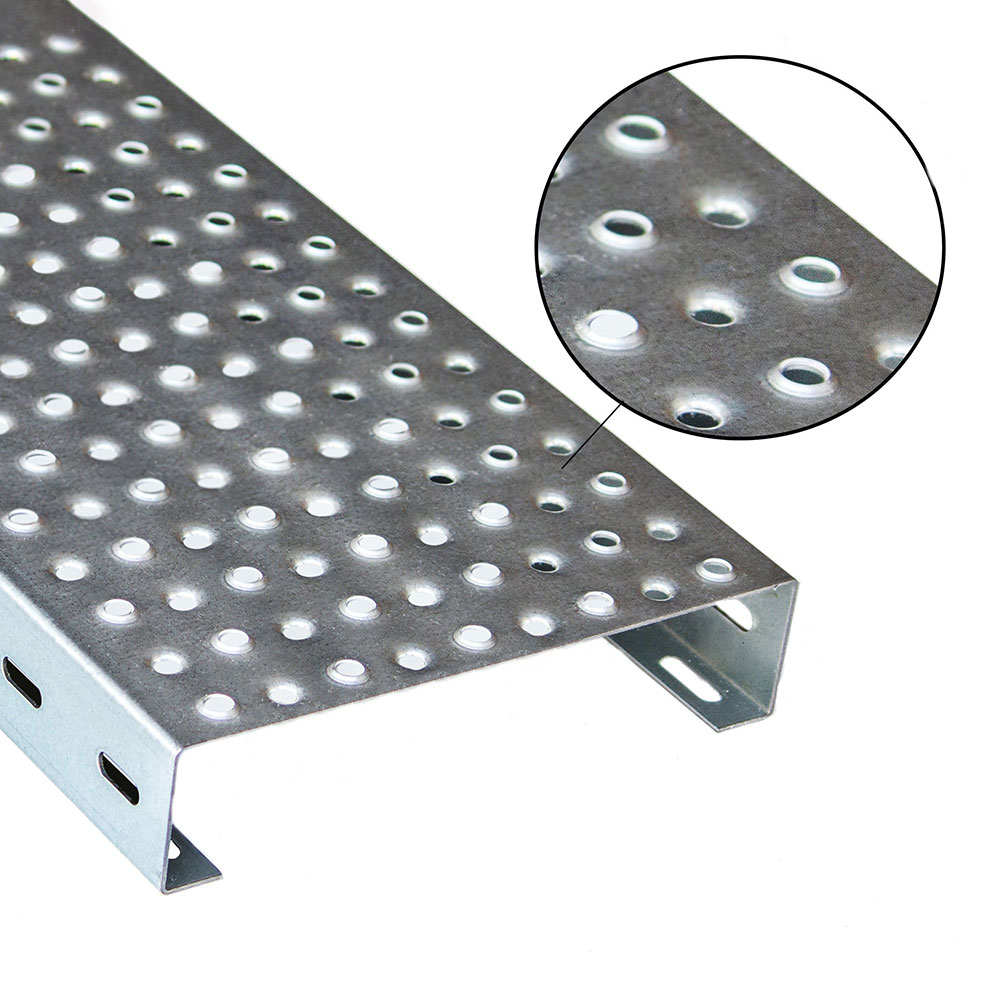

Profile LB

Profile LB

Profiles embossed perforated

Available sections: W x H x THK (mm)

  • 200x58x1.5
    250x58x1.5
  • 200x58x2.0
    250x58x2.0
    300x58x2.0
  • 200x58x2.5
    250x58x2.5
    300x58x2.5
  • 200x58x3.0
    250x58x3.0
    300x58x3.0

Length (mm):

600 to 6000
Intermediate measures:
Cutting Pitch 60 mm

Material:

  • Raw Steel Thk. 2.0 mm
    Sendzimir Zinc Plated Steel
    Hot-Dip Galvanized Steel Thk. 2.0 mm and more
    Cor-Ten A Steel Thk. 2.0 mm
    Stainless Steel AISI 304 or 316 Thk. 1.5 or 2.0 mm
    Aluminium Alloy Peraluman 5754 H111 Thk. 2.5 mm

Features:Embossed perforated surface for profile stiffening; Ø8mm perforation in upward direction guarantees the anti-slip effect. Towards perforation guarantees the atmospheric agents drainage; Suitable for cycle and pedestrian walkways, wheelchair ramps, mezzanines and technical application/gangways; Slip Resistance Rating R12 DIN 51130; Slip Resistance Rating Cor-Ten A R13 DIN 51130.
