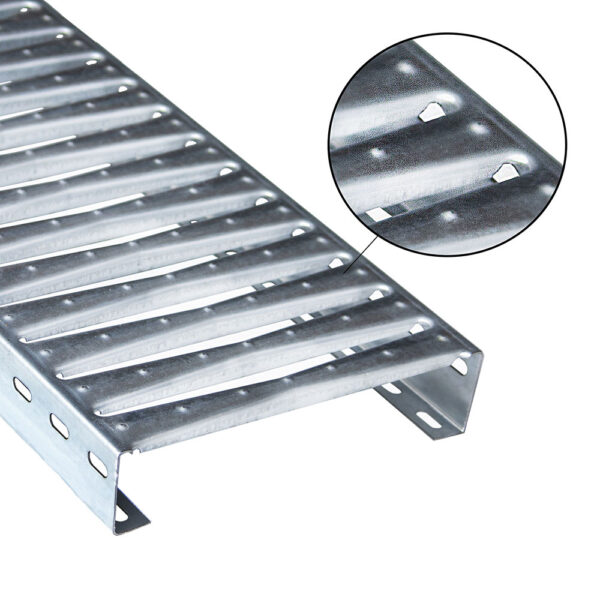

Profile RSA
Perforated profiles H58 P40 – P50
Available sections: W x H x THK (mm)
- 250x58x1.2
- 250x58x1.5
Length (mm):
600 to 12000
Intermediate measures:
Cutting Pitch 40 mm
Material:
Sendzimir Zinc Plated Steel.
Sendzimir Zinc Plated Steel.
Features: High structural rigidity; Suitable for mezzanines and gangways; 40% perforated profile; Slip Resistance Rating NON CLASSIFICATO.
-
Data sheet
